Principle overview

So far, this product is the most commonly used ordinary agitator tank, the impeller is located at the lower part of the circulating cylinder, the pulp and the medicament are added into the circulating cylinder to stirring. The company through the experiment, the design of the new impeller is different from the original Ⅰ type and Ⅱtype, high stirring efficiency.

Indication for Selection

1, According to user needs to produce rubber impeller, nylon impeller and other products, ordering need to specify.

2, According to user requirements to set the relative location of the motor, feeding port and discharge port , relevant parts are usually installed on site.

3.RJ agitator can be divided into cone bottom and flat bottom, cone bottom type need to specify.

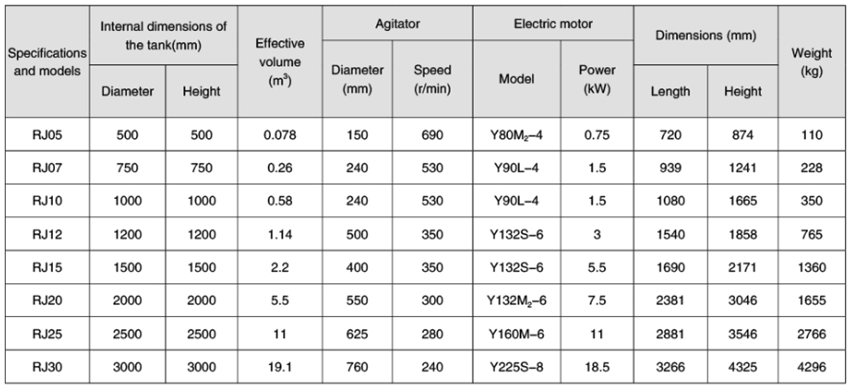

Specifications of plateform solid mixer agitator:
