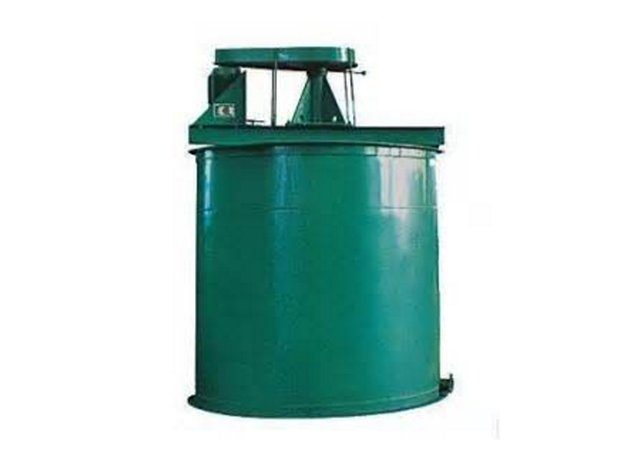

The product is designed to solve the conditions of building factories on the flat ground, in the equipment configuration, the self-leveling height of ore pulp is not enough, and add to small difference in height, at the bottom of the slurry under the centrifugal impeller suction action into the mixing tank, achieve the purpose of lifting.
Rubber impeller for the user to choose, you must indicate when ordering.
Model | Internal size of trough (mm) | Effective Volume (m3) | Impeller | Motor | Lifting Height(mm) | Dimensions(mm)(L x W x H) | Weight(kg) | |||
Diameter | Height | Diameter (mm) | Speed | Model | Power (kW) | |||||
XBT75 | 750 | 1000 | 0.42 | 300 | 572 | Y100L2-4 | 3 | 750 | 1250 x 750 x 1738 | 681 |
XBT150 | 1500 | 1800 | 2.8 | 450 | 480 | Y160L-6 | 11 | 1500 | 2100 x 1500 x 2414 | 1022 |
XBT200 | 2000 | 2500 | 6 | 550 | 362 | Y280S-6 | 15 | 1500 | 2900 x 2000 x 3000 | 2400 |
XBT250 | 2500 | 3000 | 12 | 650 | 305 | Y225M-8 | 22 | 2000 | 3500 x 2500 x 3600 | 4700 |
