Swaying feeder is used as feed equipment for ball mill and belt conveyor, there are two ways to adjust the amount of ore:
1, adjust the eccentricity of the eccentric wheel.
2, adjust the ore gate.

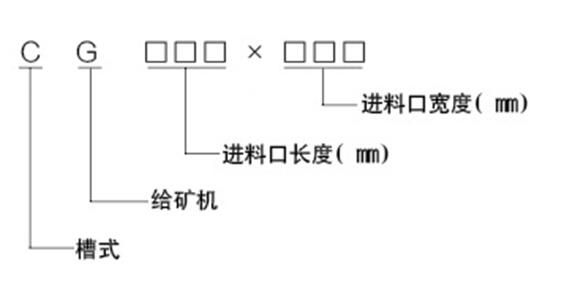

According to the scale of mineral processing and the operation system, the corresponding model of the ore feeder is provided by the production plant, the motor can be changed into a speed regulating motor, need to special order.
| model | Feed inlet (mm)L×W | discharge port (mm)L×W | eccentric throw (mm) | swing times (r/min) | Maximum Feed size (mm) | Maximum Feed capacity (t/h) | model | power (KW) | rpm (r/min) | weight (kg) | Suitable size |
| 300×300 | 300×300 | 300×30-125 | 0-90 | 46 | 30 | 6.5 | Y80M2-4 | 0.75 | 1390 | 272 | |
| 400×400 | 400×400 | 400×50-130 | 0-170 | 46 | 35 | 12 | Y90S-4 | 1.1 | 1400 | 558 | |
| 600×600 | 600×600 | 600×50-150 | 0-200 | 46 | 50 | 25 | Y90L-4 | 1.5 | 1400 | 613 | |
| 800×800 | 800×800 | 800×50-150 | 0-250 | 51.4 | 50 | 30～50 | Y132S-4 | 5.5 | 1400 | 1055 |
