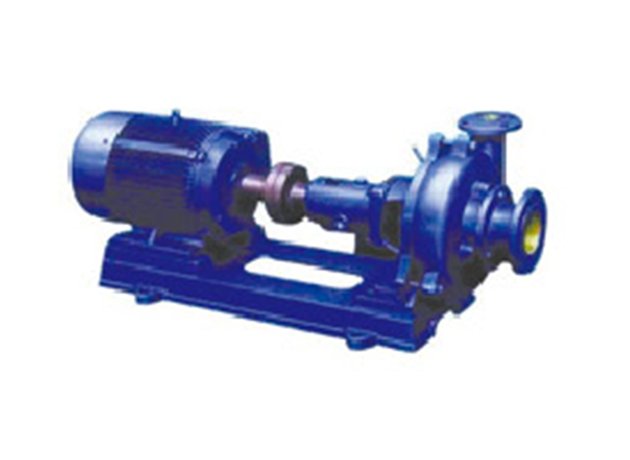

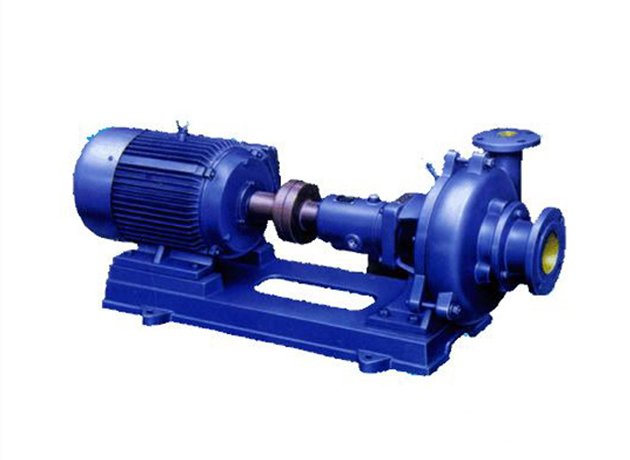

PN is a horizontal single suction cantilever centrifugal slurry pump which used to transport the Ore Pulp in the Mineral Processing Plant, the concentration of ore Pulp is the maximum 50～60%. The Bearing, the pump body is of cast iron component.

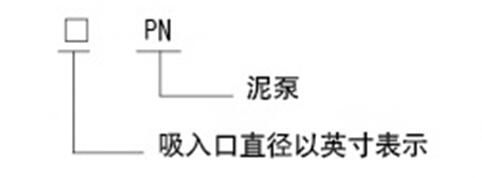

Indicate on the Model, also indicate the Technical Requirements such as the head and volume of Transport etc.
Pump Model | Flow(m3 / h) | Head (m) | The Mouth diameter of Pump (mm) | speed (r / min) | Motor | Dimensions (mm) (L x an x al) | Total weight (kg) | ||
Absort | Vomit | Model | Power (kW) | ||||||
| 1PN | 12 | 14 | 50 | 25 | 1420 | Y100L2-4 | 3 | 590×350×305 | 120 |
| 2PN | 40 | 20 | 100 | 50 | 1460 | Y160M-4 | 11 | 190×465×400 | 447 |
