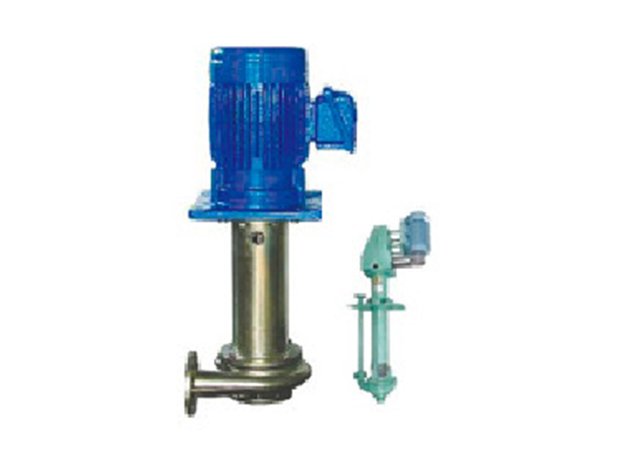

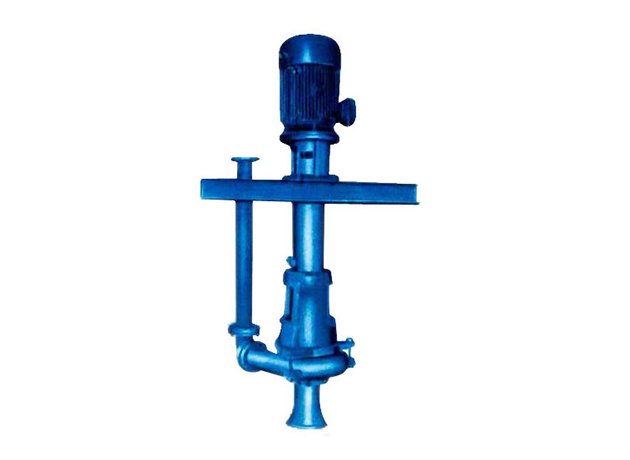

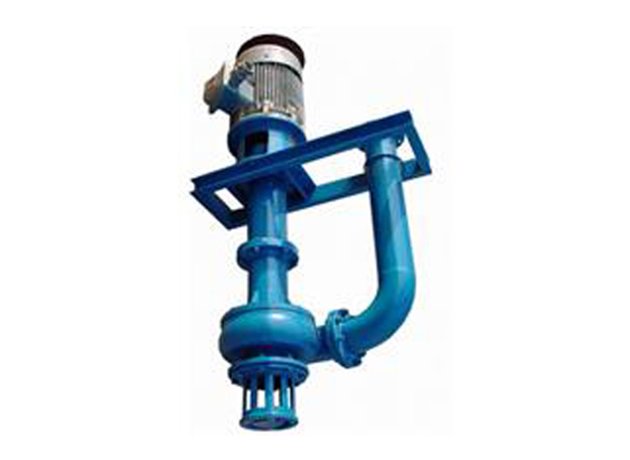

PSC type pump is a vertical installation of liquid centrifugal mortar pump which can be transported with a mixture of gravel slurry

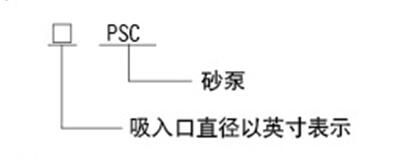

Indication of the Model, also indicate the Technical Requirements such as the head and Flow Volume etc.
Pump Model | Flow (m3 / h) | Head (m) | The Mouth diameter of Pump(mm) | Speed (r / min) | Motor | Dimensions (mm) (L x an x al) | Total weight(kg) | ||
Absorb | Vomit | Model | Power(kW) | ||||||
| 1PSC | 12 | 14 | 50 | 25 | 1420 | Y100L2-4 | 3 | 1106×536×1028 | 215 |
| 2PSC | 14.4, 28.8 | 22.5, 20 | 95 | 50 | 1460 | Y160M-4 | 11 | 1000×450×1510 | 553 |
