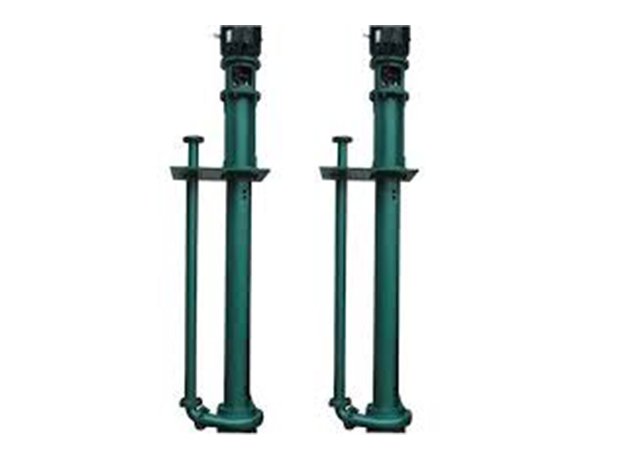

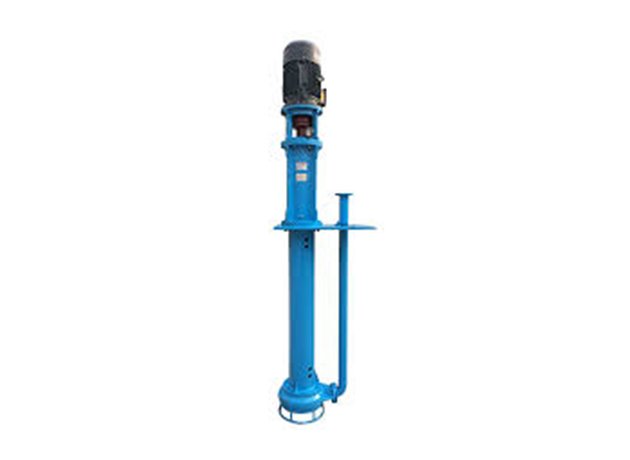

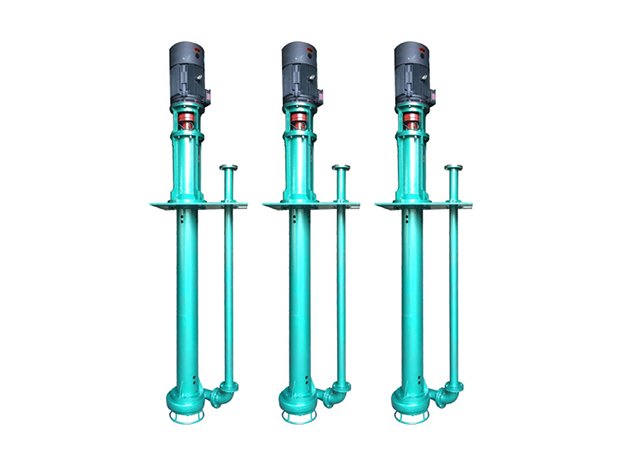

YZ submersible slurry pump

Home Products Hydrometallurgical Equipment and Pumps Pumps

Online consultation

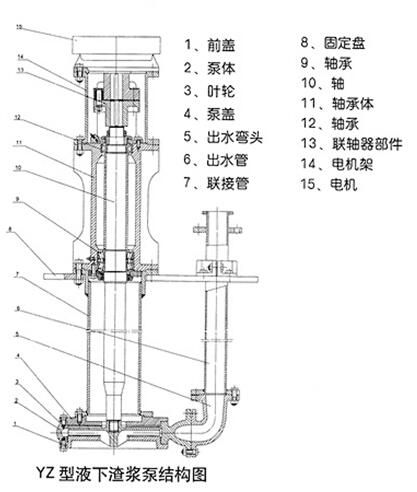

YZ type slurry pump is a vertical single stage single suction cantilever centrifugal pump , the impeller is a semi open impeller, the impeller suction side extension is equipped with a mixing blade, used widely in the Fields such as the Generation, Steel, Cement, Mine etc, can send materials at height temperature (480℃) such as kerosene, crude oil, Asphalt, etc.

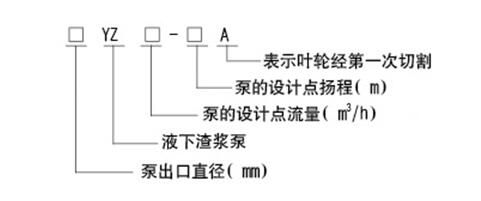

Indication of model and quantity, also indicate the Technical Requirements such as the head and Flow Volume etc.

Model	Flow (m3 / h)		Head (m)	Speed (r / min)	Efficiency (%)	Motor m3 / h L / S
Model	m3/h	L/S	Head (m)	Speed (r / min)	Efficiency (%)	Model	Power (kW)
50YZ20-18	12	3.3	20.5	1430	40	Y112M-4	4
	20	5.6	18		45
	24	6.7	16.5		42
	8	2.2	8.3	940	40	Y100L-6	1.5
	13	3.6	7.3		45
	15	4.2	6.7		42
50YZ20-18A	10.2	2.8	14.8	1430	39	Y100L2-4	3
	17	4.7	13		44
	20.4	5.7	11.9		41
	6.8	1.9	6	910	39	Y90L-6	1.1
	11.1	3.1	5.3		44
	12.8	3.5	4.8		41
50YZ30-30	18	5	33	1460	30	Y160M-4	11
	30	8.3	30		38
	36	10	27		40
80YZ50-20	30	8.3	23	1440	43	Y132M-4	7.5
	50	13.8	20		50
	60	16.7	17.5		46
	20	5.6	10	960	28	Y132S-6	3
	33	9.2	8.7		34
	40	11.1	7.6		36
80YZ50-20A	27	7.5	21	1440	42	Y132M-4	7.5
	45	12.5	18		49
	54	15	15		45
	17.6	4.9	9	940	27	Y112M-6	2.2
	29	8	7.7		33
	35	9.8	6.4		35
80YZ50-20B	24	6.7	17.5	1440	40.5	Y132S-4	5.5
	40	11.1	16		48
	48	13.3	14		43
	16	4.4	7.6	940	26	Y100L-6	1.5
	26	7.2	7		33
	32	8.8	6		34
80YZ50-50	30	8.3	60	1470	42	Y180L-4	22
	50	13.8	55		50
	60	16.6	53		46
	19	5.3	25.6	970	40	Y160M-6	7.5
	32	8.9	23.4		49
	39	10.8	22.6		45
80YZ50-50A	28	7.8	54	1470	40	Y180M-4	18.5
	48	13.3	49		49
	58	16.1	47.5		45
	18	5	15	960	38	Y132M1-6	4
	31	8.6	13.6		48
	38	10.5	13.2		44
80YZ50-50B	25	6.94	42.5	1460	38	Y160L-4	15
	42	11.7	39		48
	50	13.8	37.5		44
	16	4.4	18.3	960	36	Y132S-6	3
	27.6	7.7	16.8		47
	32	8.9	16		43
80YZ80-20	48	13.3	22	1460	45	Y160M-4	11
	80	22.2	21		55
	96	26.7	18.5		53
	31	8.6	9.5	960	45	Y132M1-6	4
	52	14.4	9		55
	63	17.5	8		53
80YZ80-20A	44	12.2	18.6	1460	43	Y160M-4	11
	73	20.3	17.5		53
	90	25	15.6		51
	28	7.8	8	960	43	Y132M1-6	4
	48	13.3	7.5		53
	59	16.4	6.5		51
80YZ80-20B	39	10.8	16	1460	43	Y132M-4	7.5
	68	18.9	15		53
	80	22.2	13.4		51
	25	6.9	6.9	960	43	Y132S-6	3
	44	12.2	6.5		53
	52	14.4	5.8		51
100YZ100-30	60	16.7	36	1470	41	Y180L-4	22
	100	27.8	31		54
	120	33.3	28		56
	39	10.8	15.5	970	41	Y160M-6	7.5
	65	18.1	13.5		54
	79	21.9	12		56
100YZ100-30A	75	20.8	30	1470	39	Y180M-4	18.5
	92	25.6	26		52.5
	110	30.6	24		54
	48	13.3	12.8	960	39	Y132M2-6	5.5
	60	16.7	11		52.5
	71	19.7	10		54
100YZ100-30B	50	13.9	25	1460	38	Y160L-4	15
	85	23.6	22		52
	102	28.3	20		53
	32	8.9	10.8	960	38	Y132M2-6	5.5
	55	15.3	9		52
	67	18.6	8		53
100YZ120-60	72	20	61	1480	38	Y250M-4	55
	120	33	60		50.5
	144	40	56		52
	47	13.1	26	970	38	Y200L1-6	18.5
	78	21.7	25		50.5
	94	26.1	24		52
100YZ120-60A	65	18	50	1480	36.5	Y225M-4	45
	108	30	49		49
	130	36.1	46		50
	42	11.7	21.5	970	36.5	Y180L-6	15
	70	19.4	21		49
	85	23.6	6.8		50
100YZ120-60B	59	16.4	41	1480	35.5	Y200L-4	30
	98	27.2	40		48
	118	32.8	37		49
	38	10.5	17.5	970	35.5	Y160L-6	11
	64	17.8	17		48
	77	21.4	15.5		49
100YZ160-38	96	26.7	45	1480	43.8	Y225M-4	45
	160	44.4	39		52
	192	53.3	36		50.6
	62	17.2	19	970	43.8	Y180L-6	15
	104	28.9	16.5		52
	125	34.7	15		50.6
100YZ160-38A	88	24.4	38	1480	42.8	Y225S-4	37
	148	41.1	33		51
	177	49.2	30		49.5
	57	15.8	16	970	42.8	Y160L-6	11
	97	26.9	14		51
	116	32.2	12.5		49.5
100YZ160-38B	82	22.8	33	1480	43	Y200L-4	30
	137	38.1	28		52
	164	45.6	26		50
	53	14.7	14	970	43	Y160L-6	11
	89	24.7	12		52
	107	29.7	11		50
