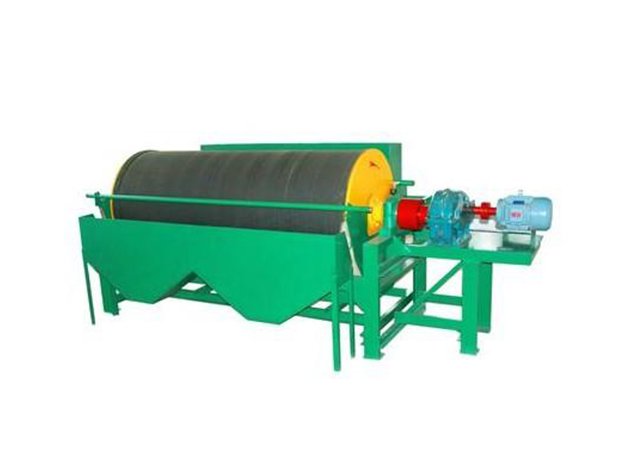

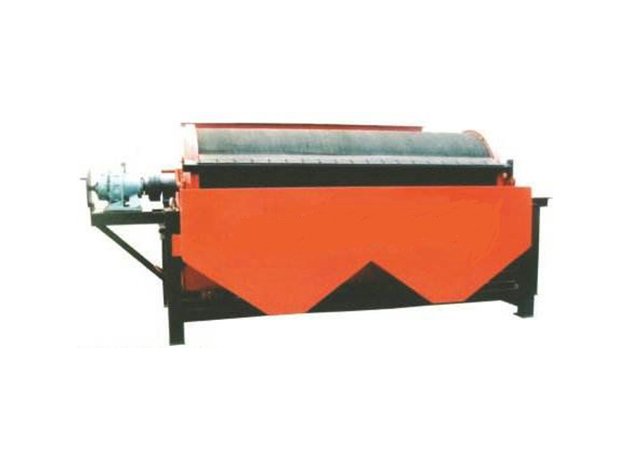

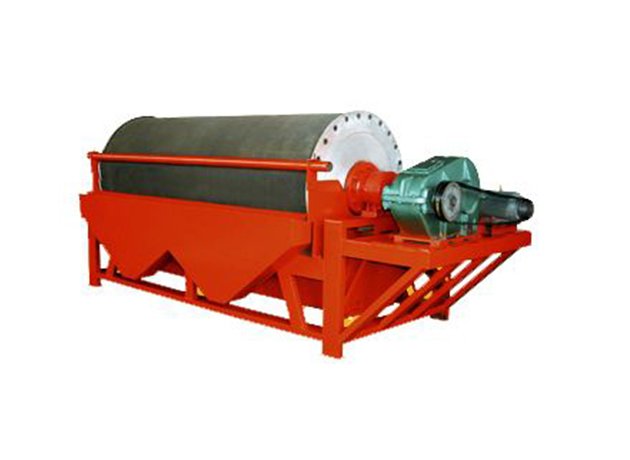

This product is specially designed for the concentrated magnetic separation process of low concentration pulp,increase concentration. The utility model is mainly used for the concentration of coarse grain minerals in the high frequency sieve, which is favorable for improving the efficiency of regrind,lower the production cost.
Concentration of ore concentrate is high
◆ The magnetic system use large angle design to extend the length of mineral processing zone and unloading time.
◆Update the tank discharge gap and discharge height .The concentration of concentrate is above 68%.
◆High recovery rate.
Model | Cylinder size | Surface magnetic induction strengthMt | processing capacity | Motor power Kw | Cylinder speed r/min | Total weight of machine kg | ||
| The diameter of the cylinder mm | Tube length mm | t/h | m3/h | |||||
| NCTB-918 | 900 | 1800 | magnetic induction intensity based on ore grade | 25-40 | 70-120 | 4 | 26 | 3300 |
| NCTB-1018 | 1050 | 1800 | 40-60 | 130-200 | 5.5 | 22 | 4300 | |
| NCTB-1021 | 1050 | 2100 | 50-70 | 150-240 | 5.5 | 22 | 4900 | |
| NCTB-1024 | 1050 | 2400 | 60-80 | 160-280 | 5.5 | 22 | 5600 | |
| NCTB-1030 | 1050 | 3000 | 80-120 | 240-400 | 7.5 | 22 | 7500 | |
| NCTB-1218 | 1200 | 1800 | 60-75 | 160-280 | 11 | 17 | 5900 | |
| NCTB-1224 | 1200 | 2400 | 80-110 | 240-380 | 11 | 17 | 6800 | |
| NCTB-1230 | 1200 | 3000 | 100-140 | 260-400 | 11 | 17 | 8200 | |
| NCTB-1236 | 1200 | 3600 | 120-160 | 300-550 | 15 | 17 | 9200 | |
| NCTB-1240 | 1200 | 4000 | 130-170 | 330-600 | 15 | 17 | 10500 | |
| NCTB-1245 | 1200 | 4500 | 150-200 | 380-660 | 15 | 17 | 12000 | |
| NCTB-1530 | 1500 | 3000 | 100-180 | 290-480 | 11 | 14 | 11000 | |
| NCTB-1540 | 1500 | 4000 | 150-200 | 320-540 | 15 | 14 | 13500 | |
| NCTB-1545 | 1500 | 4500 | 180-240 | 400-650 | 18.5 | 14 | 16500 | |
| NCTB-1550 | 1500 | 5000 | 210-280 | 500-750 | 18.5 | 14 | 19800 | |
