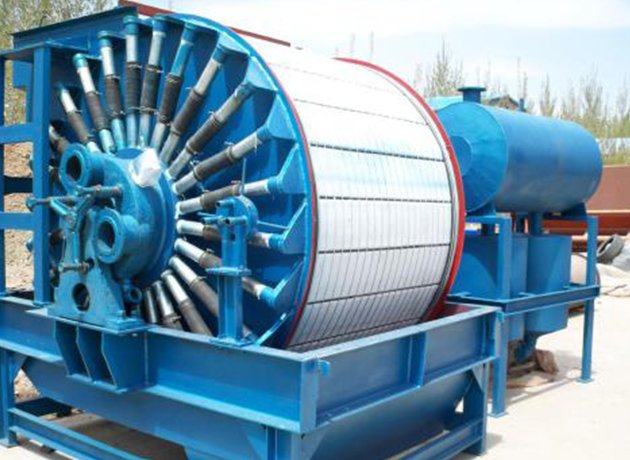

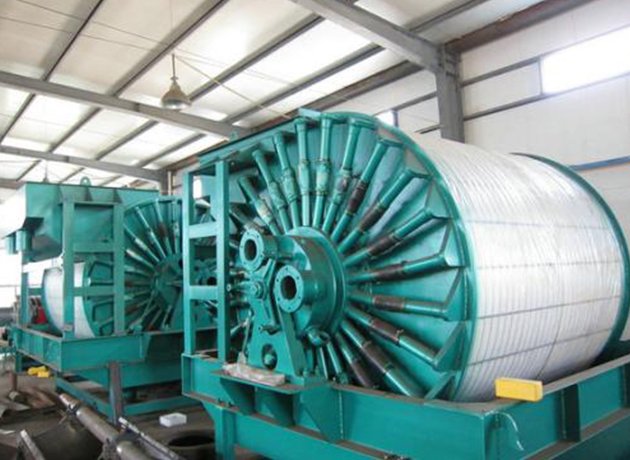

GYW series permanent magnetic vacuum filter is the type of cartridge filter by upper feeding which is mainly suitable for the dehydration of coarse magnetic material.
The optimum working conditions for the filter:
The specific magnetization coefficient of solid particles in the pulp more than 3000000001 cm / 3, the particle size is 0.1~0.8, the feed concentration is ≥60%

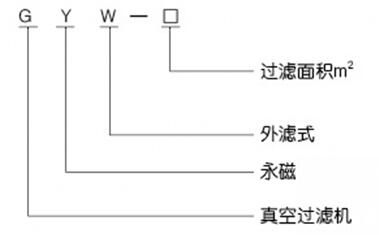

Model | GYW-3 | GYW-5 | GYW-8 | GYW-12 | GYW-20 |
Diameter of cylinder （m3） | 3 | 5 | 8 | 12 | 20 |
The length of the cylinder （mm） | 1600 | 2000 | 2000 | 2000 | 2550 |
The length of the cylinder （mm） | 700 | 900 | 1400 | 200 | 2650 |
Surface magnetic induction strength （mT） | 80 | 80 | 82 | 87 | 87 |
Filter cake moisture content （%） | 8-11 | 8-11 | 5-15 | 5-15 | 5-15 |
0.15-0.80 Throughput (t / h) Feed strength for: 0,15-0,80 | 6-9 | 14-18 | 22-45 | 33-65 | 54-108 |
Motor power（kW） | 1.5 | 1.5 | 1.5 | 2.2 | 4 |
Total weight（t） | 3.565 | 3.935 | 4.754 | 5.42 | 6.55 |
Cylinder speed (r / min) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
Vacuum pump (mm / hg) | 450-600 | 450-600 | 450-600 | 450-600 | 450-600 |
Pumping capacity（m3/m×m2） | 1～2 | 1～2 | 1～2 | 1～2 | 1～2 |
Blast pressure (continuous blow) （kg/cm2） | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 |
Blast volume (continuous blast)（m3×m2 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
Filter area angle (degree) | 176 | 176 | 176 | 176 | 176 |
Unloading area angle (degree) | 21 | 21 | 21 | 21 | 21 |
Regeneration zone angle (degree) | 100 | 100 | 100 | 100 | 100 |
