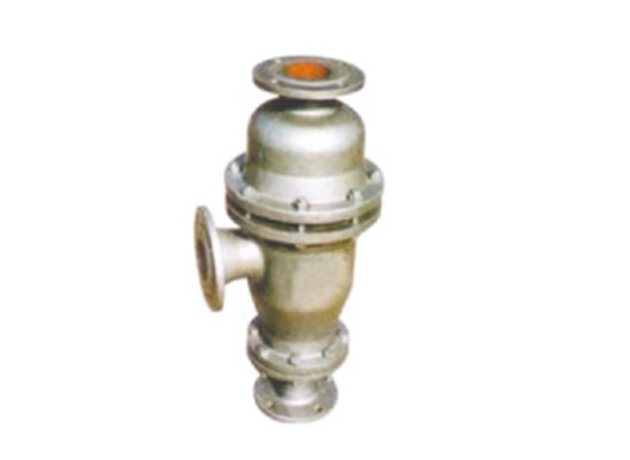

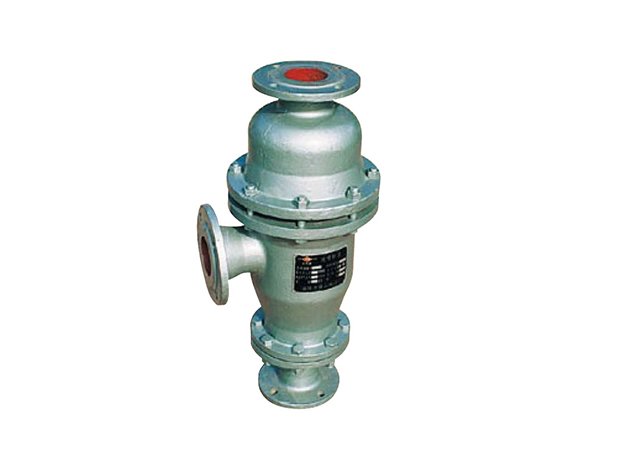

The product is a high installation (above 11mm) suction vacuum equipment. The utility model has no power, and it is matched with a pressure water tank. The structure is characterized in the upper part of the nozzle which provided with a diversion plate which has the high installation position , great length and good diversion performance .
Individual order of the product
model | water pressure (Kg/cm3) | Volume of Water(m3/h) | Extraction and absorption of Air(m3/h) | Attached Water Pump | ||||
Corresponding vacuum degree (mmHg) | Corresponding vacuum degree (mmHg) | |||||||
| 300 | 400 | 500 | 300 | 400 | 500 | |||
| SPB350 | -0.097 | 49 | 50.2 | 52.1 | 4.2 | 4 | 3.9 | IS80-65-160/7.5kw,IS100-80-160/11kw |
| SPB450 | -0.097 | 98 | 100 | 102 | 12 | 11 | 10 | IS150-125-315A/22kw |
| SPB600 | -0.097 | 175 | 178 | 180 | 19 | 21 | 20 | 8sh-13A/37KW |
