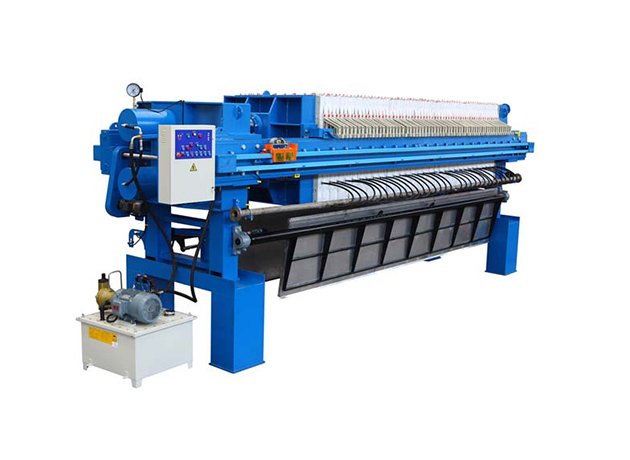

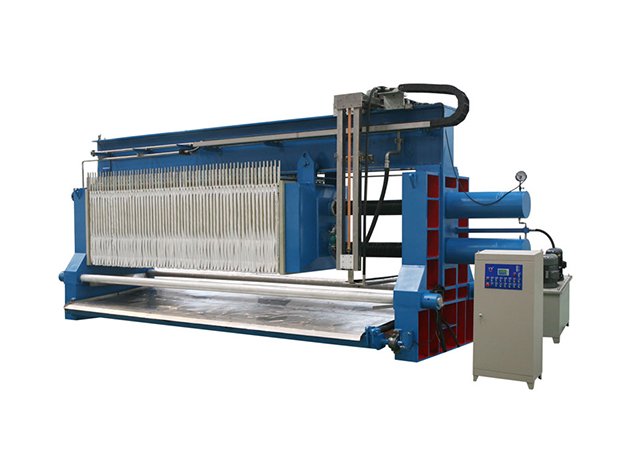

The Machine is a intermittent solid - Liquid Separation equipment , being made with Electronic, mechanical Integration and Design, reasonable structure, Easy operation, and can perform the respective services such as Push panel Filter, maintain pressure, release the Panel Filter etc. The Filter Chamber is formed by a box plate and filter box, Under the pressure of the feed pump,form the slurry into the filter chamber,through filtration media, separate the solid and liquid.Widely used for sewage Treatment in the Industries such as Mine, Metallurgy and Chemical Industry etc.

model	Filtration area（m2）	Number of filter chambers	Filter plate（mm）	Cake thickness（mm）	volume（m3）	pressure（MPa）	dimension（mm）	power（kW）	weight（kg）
XMAZ 20/800U	20	20	800×800×60	30	0.287	0.5～1.6	3500×1350×1160	2.2	2750
XMAZ 30/800U	30	30			0.453		4110×1350×1160		3130
XMAZ 40/800U	40	40			0.605		4720×1350×1160		3420
XMAZ 50/800U	50	50			0.756		5330×1350×1160		3700
XMAZ 60/800U	60	60			0.907		5940×1350×1160		4110
XMAZ 70/800U	70	70			1.059		6550×1350×1160		4400
XMAZ 80/800U	80	80			1.21		7160×1350×1160		4740
XMAZ 40/900U	40	32	900×900×60	30	0.59	0.5～1.6	4320×1480×1280	2.2	4500
XMAZ 50/900U	50	40			0.75		4720×1480×1280		4800
XMAZ 60/900U	60	47			0.88		5150×1480×1280		5100
XMAZ 70/900U	70	63			1.19		6120×1480×1280		5700
XMAZ 60/1000U	60	38	1000×1000×60	30	0.9	0.5～1.6	5450×1560×1360	2.2	7080
XMAZ 80/1000U	80	50			1.19		6180×1560×1360		7830
XMAZ 100/1000U	100	62			1.48		6910×1560×1360		8680
XMAZ 120/1000U	120	75			1.8		7710×1560×1360		9250
XMAZ 125/1250U	120	46	1250×1250×65	32	1.9	0.5～1.6	6500×1770×1620	4	10900
XMAZ 150/1250U	150	58			2.41		7290×1770×1620		11800
XMAZ 180/1250U	180	69			2.88		8020×1770×1620		12700
XMAZ 200/1250U	200	77			3.22		8550×1770×1620		13300
XMAZ 220/1250U	220	84			3.51		9010×1770×1620		13900
XMAZ 250/1250U	250	95			3.98		9740×1770×1620		14800
XMAZ 300/1500U	300	77	1500×1500×70	32	4.76	0.5～1.6	10040×2400×1800	5.5	26500
XMAZ 320/1500U	320	83			5.14		10460×2400×1800		27190
XMAZ 340/1500U	340	88			5.45		10820×2400×1800		27880
XMAZ 350/1500U	350	90			5.58		10960×2400×1800		28230
XMAZ 380/1500U	380	98			6.08		11530×2400×1800		29260
XMAZ 400/1500U	400	103			6.39		11880×2400×1800		29950
XMAZ 450/1500U	450	116			7.21		12810×2400×1800		31670
XMAZ 500/1500U	500	128			7.96		13660×2400×1800		33390
XMAZ 560/2000U	560	80	2000×2000×83	40	11.16	0.5～1.6	10600×2900×2450	11	56500
XMAZ 600/2000U	600	86			12.01		12110×2900×2450		58000
XMAZ 630/2000U	630	90			12.58		12440×2900×2450		59000
XMAZ 670/2000U	670	96			13.43		12950×2900×2450		60500
XMAZ 710/2000U	710	101			14.13		13770×2900×2450		62000
XMAZ 750/2000U	750	107			14.98		13870×2900×2450		63300
XMAZ 800/2000U	800	114			15.97		14460×2900×2450		65200
XMAZ 850/2000U	850	121			16.96		15050×2900×2450		67000
XMAZ 900/2000U	900	128			17.95		15640×2900×2450		69000
XMAZ 950/2000U	950	135			18.94		16220×2900×2450		70600
XMAZ 1000/2000U	1000	142			19.92		16810×2900×2450		72300
XMAZ 1060/2000U	1060	151			21.2		17570×2900×2450		74500
XMAZ 1120/2000U	1120	159			22.33		18240×2900×2450		76800
XMAZ 1180/2000U	1180	168			23.61		19000×2900×2450		79000
